Detailinformationen |
|||
| Druckgröße: | 600 mm, a1 | Abmessungen: | 170*72*153cm |
|---|---|---|---|
| Gewicht: | 400 kg | Tintenart: | Pigment-Tinte |
| Stromspannung: | 220 V/110 V | Druckenkopf: | I3200 |
| Hauptplatine: | - Was ist los? | Tintefarbe: | CMYKWWWW |
| Druckbreite: | 60 cm | Druckgeschwindigkeit: | 4Pass: 10-16㎡/h, 6Pass: 8-12㎡/h |
| Haustierfilmbreite: | 600 mm | Schnittstelle: | Gigabit -Ethernet |
| Maschinengröße: | 1920 mm*760 mm*1470 mm | Packgröße: | 2020 mm*780 mm*750 mm |
| Leistung: | 16a, 4,5 kW | ||
| Hervorheben: | 24 Inch DTF Printer,Dual I3200 Heads DTF Printer,600mm Print Width DTF Printer |
||
Produkt-Beschreibung

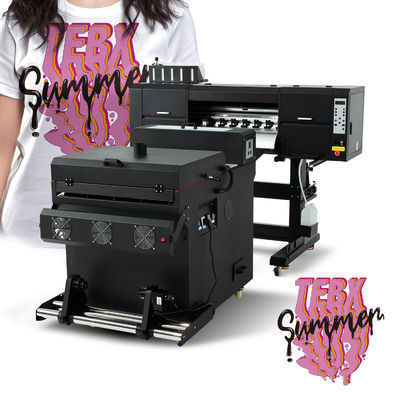

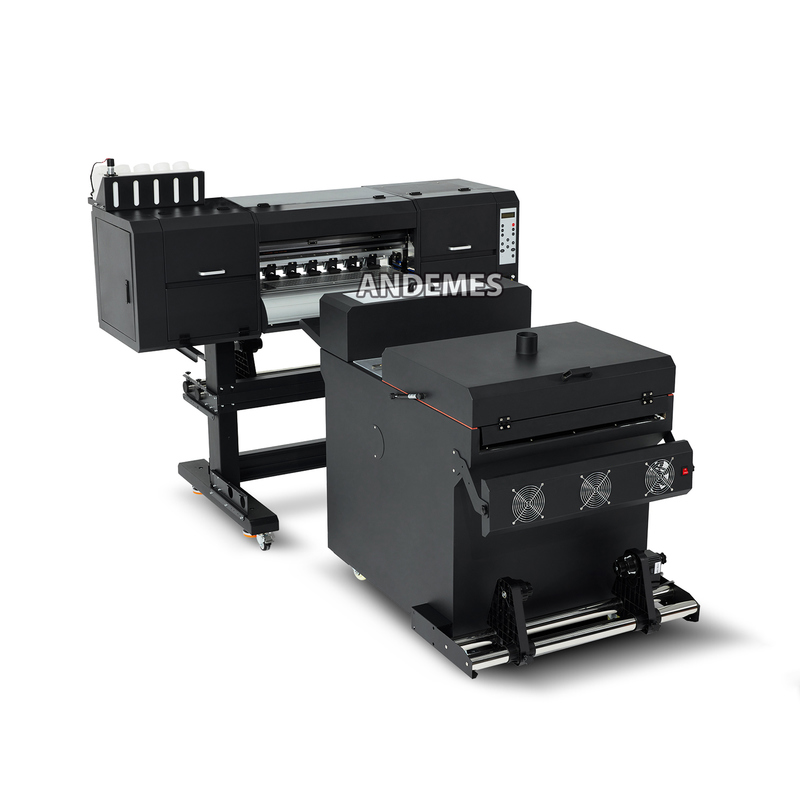

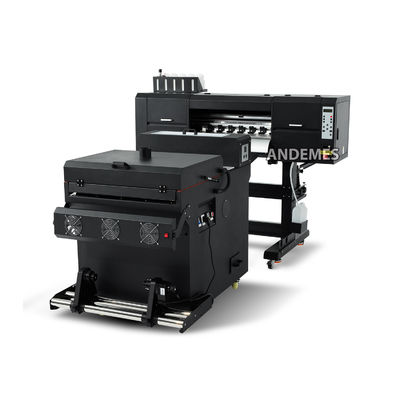

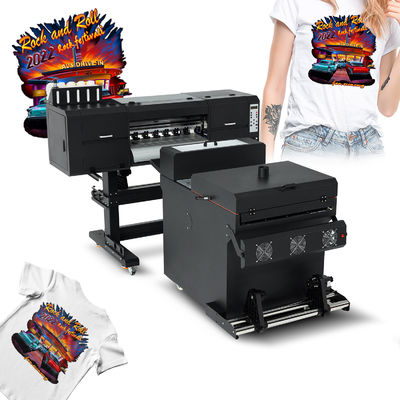

24 Inch DTF Printing Machine with Powder Shaker - Dual I3200 Heads
Product Specifications
| Printer Model No. | AMS-6502 |
|---|---|
| Printhead Quantity | 2 |
| Printing Speed |
I3200: 4pass:10-16㎡/h | 6pass:8-12㎡/h 4720: 4pass:10-15㎡/h | 6pass:8-11㎡/h |
| PET Film Width | 600MM |
| Voltage | 220V/110V |
| Interface | Gigabit Ethernet |

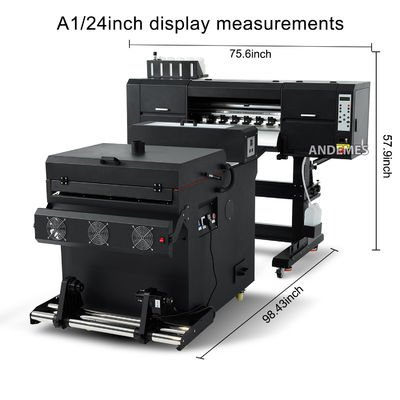

| Machine Size (L*W*H) | 1920mm*760mm*1470mm (150KG) |
| Packing Size (L*W*H) | 2020mm*780mm*750mm (194KG) |

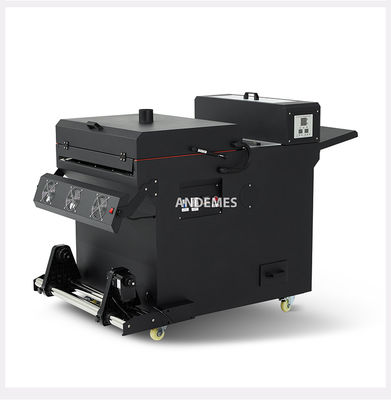

Shaker Specifications
| Model No. | AMS-600 | AMS-650-X2 |
|---|---|---|
| Heating Device | Infrared carbon fibre heating tube | Quartz heating tube/infrared heating tube |
| Power | 16A,4.5KW | 16A,5KW |
| Machine Size (L*W*H) | 1700mm*830mm*1100mm (76KG) | 2300mm*1130mm*1080mm (170KG) |
| Packing Size (L*W*H) | 1220mm*880mm*1250mm (122KG) | 1950mm*1150mm*1260mm (223KG) |
Product Images
Packaging and Shipping
About ANDEMES
Guangzhou Andemes Culture Co., LTD was established in Guangzhou, is a comprehensive import & export trade enterprise specializing in development, production and sales. ANDEMES is a service-oriented company integrating digital printing/digital prepress proofing equipment R&D, digital printing consumables and accessories.
Our product range includes DTF supplies (ink, powder, films), DTF parts, machine cleaning solutions, DTF machines, UV printing machines, and heat press machines. Most products have complete safety certificates including CE, MSDS, and ROHS. Our mature supply chain ensures best service and stable quality, providing customers with efficient and cost-effective equipment solutions.
Frequently Asked Questions
1. Are you manufacturer?
Yes, we develop, manufacture and sell DTF printers and related products.
2. Where can I buy the spare parts and inks?
We provide spare parts and inks, and recommend purchasing a complete set for optimal printing results.
3. How to install software after receiving the machine?
A software usage guide is included. Please close antivirus software before installation.
4. What should I do if I don't know how to set printer parameters?
Contact us for technical support. Avoid manual modifications - we provide online technical assistance.
5. What do I need when buying a DTF printer?
Special DTF ink, DTF hot melt adhesive powder, and DTF film-PET film are required.
